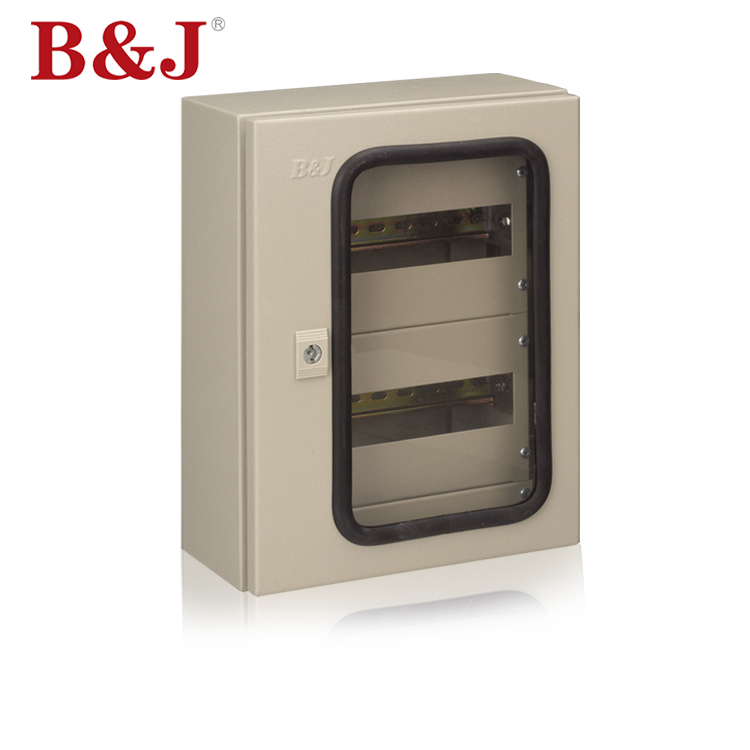

Customized Module Kit For Wall Mount Enclosure Distribution Panel Board

Model Number：MDBJ

① Monthly output capacity: 25 containers.

② We are an export factory with 25 years' production experience

③ We provide customers with OEM and ODM services.

④ Delivery can be coordinated, with the shortest lead time being 15 days.

Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
Provides a degree of protection from falling dirt, dust, oil and water.

Opening over 120° in all cases

Enclosure and door: Dipcoat-primed, powder-coated in textured Ral7032 or Ral7035 outside
Mounting plate: RAL2000 or galvanized

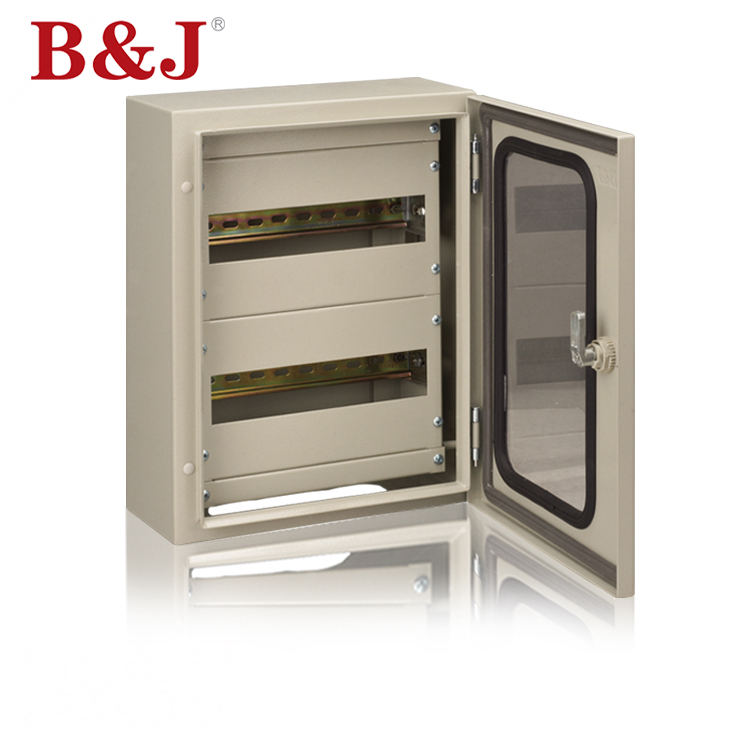

Dinimel frames are ready to be directly fitted in to standard enclosures for easy and time saving electrical distribution installations.

Reference	Height	Width	Depth	number of gland hole
	mm			quantity	Width	Depth
BJS1-2020/150	200	200	150	1	130	60
BJS1-2520/150	250	200	150	1	130	60
BJS1-2525/150	250	250	150	1	130	60
BJS1-33/150	300	300	150	1	175	60
BJS1-33/150	300	300	150	1	175	60
BJS1-34/200	300	400	200	1	318	120
BJS1-44/150	400	400	150	1	175	60
BJS1-46/200	400	600	200	1	415	120
BJS1-53/250	500	300	250	1	175	60
BJS1-85/250	800	500	250	1	415	120
BJS1-86/200	800	600	200	1	415	120
BJS1-86/250	800	600	250	1	415	120
BJS1-86/300	800	600	300	1	415	120
Other sizes,cut-outs and drilled holes according to your requirement
