Description:
Product Feature：
♦ Material:The body is PC and the transparent cover is PC;
♦ The distribution box can install 18 circuit breakers;
♦ The distribution box is IP66;
♦ The distribution box flame retardant grade V0;
♦ The distribution box is with transparent cover;
♦ Range of sizes available;
♦ The Box is easy and safe to use;

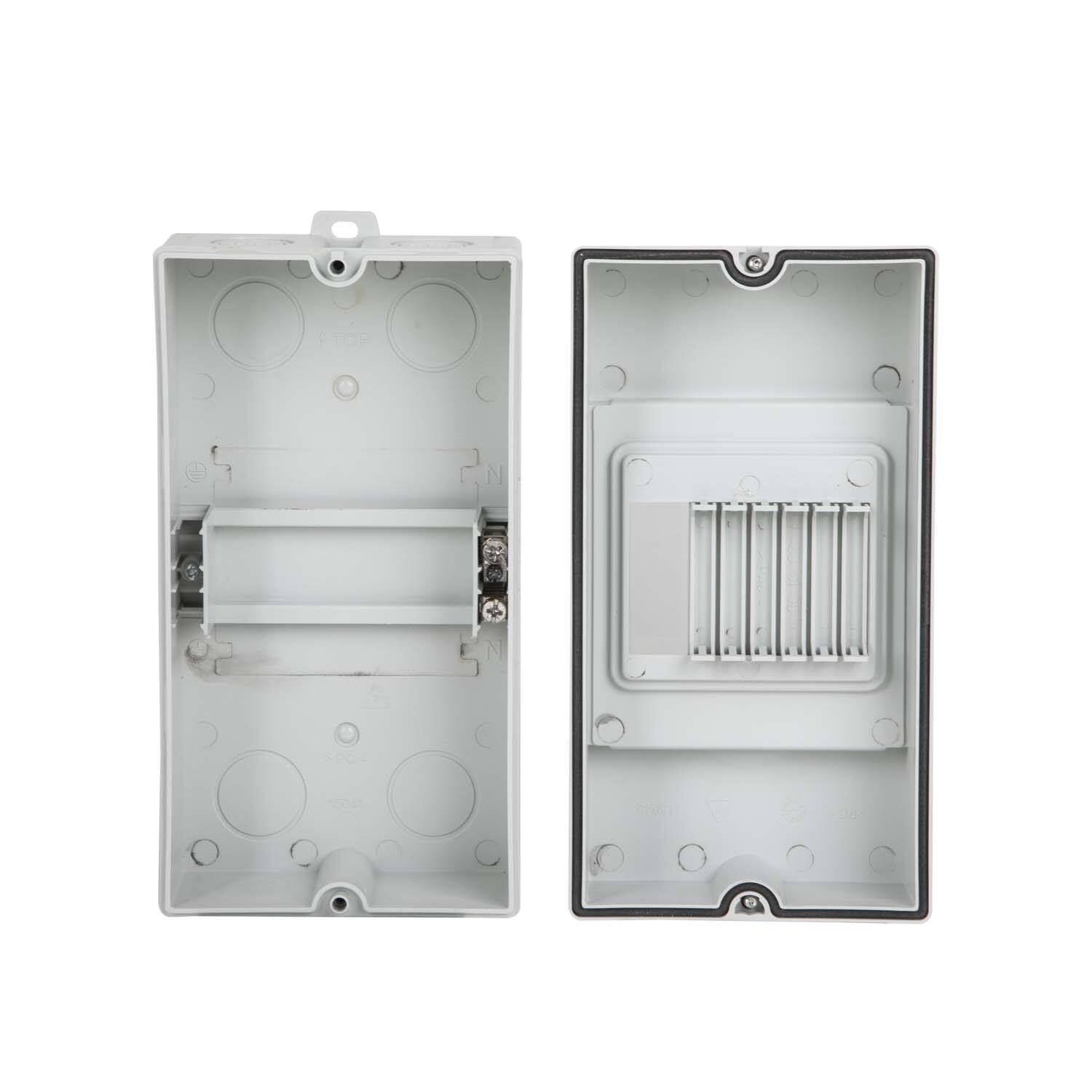

♦The distribution box has 35mm standard din rail & earth terminals inside.
♦It is applicable for special waterproof, dustproof and corrosion-proof locations.
♦Customizable Knockout Design,Features Pre-Molded Knockouts to Meet Your Various Needs
Reference |
Height |
Width |
Depth |
Case pack |
BJE-1504 |
107 |
212 |
92 |
30 |
BJE-1506 |
165 |
200 |
100 |
20 |
BJE-1509 |
219 |
200 |
100 |
20 |
BJE-1512 |
273 |
230 |
110 |
20 |
BJE-1518 |
381 |
230 |
110 |
10 |
BJE-1524 |
273 |
380 |
110 |
10 |
BJE-1536 |
381 |
380 |
110 |
10 |
Specifications:
Place of Origin: |
CHINA |
Keyword |
distribution box |
Brand Name: |
B&J |
Model Number: |
BJE-1504,BJE-1506.BJE-1509,BJE-1512,BJE-1518,BJE-1524,BJE-1536 |
Certification: |
IP66 |
Material |
ABS or PC |
Temperature Range |
-40℃ to 80℃ |
Package |
Cartons/Pallets |
Number of Sockets |
4,6,9,12,18,24,36 |
characteristic |
Waterproof dustproof dustproof corrosion resistance |
Flame retardant class |
V0 |
Impact level |
IK08 |
