IP68 Waterproof Plastic Enclosures Electronic Junction Box

Key Features

• lIdeally suited for mounting printed circuit boards or DIN rail

mounted components.

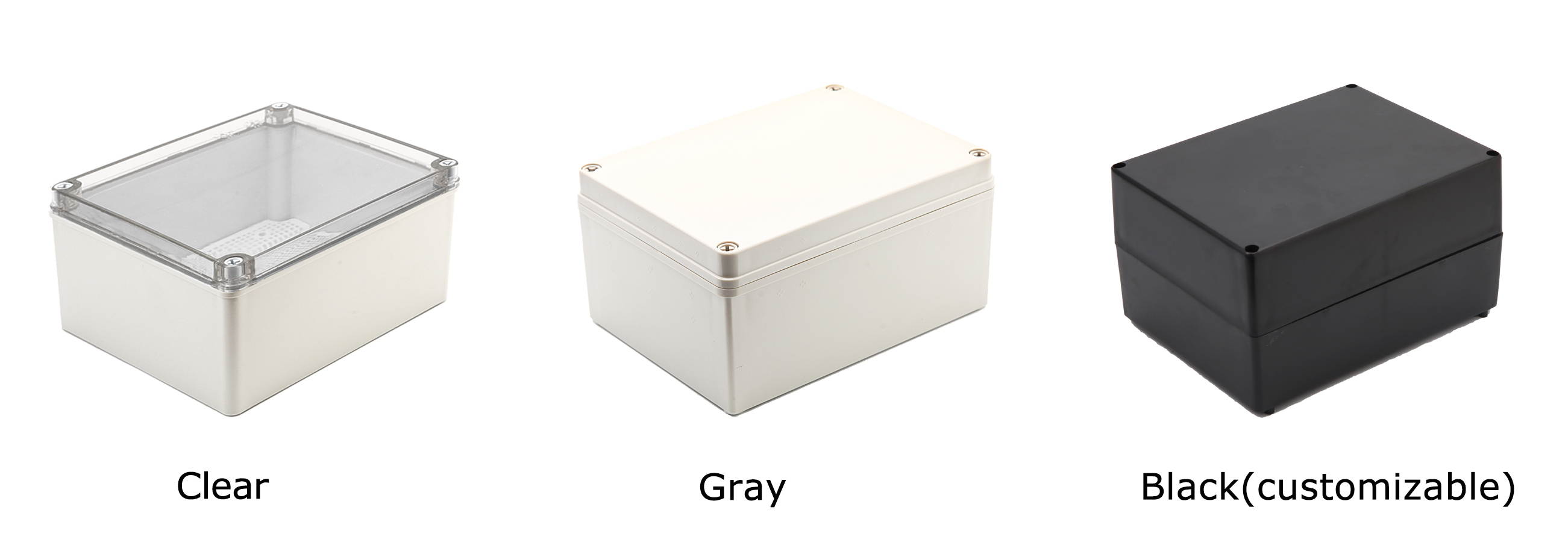

• lEnclosure color is a light gray .
• lGasketed lid with two piece tongue and groove construction provides protection against access of oil, dust, and water.
• lSupplied loose inside the enclosure (not pre-installed).
• lLid is secured with included ABS screws which are threaded into lcorrosion resistant bushings for repetitive assembly and disassembly.
• All hardware is designed to avoid corrosion caused by harsh environments over time.
• lLid screws are self-captivating. Lid holes are threaded with the first installation of lid screws.
• the lid screws carriy anti-shedding design：Gland plate with sealing gasket Effectively avoid the problem of missing screws,especially when workong at height,to prevent the screws from falling.

Ratings:

ABS（Conventional）

• ABS versions are molded from general purpose material which carries a flammability rating of UL94-HB. For indoor use.
• ABS versions are not UL listed but have been tested to and meet IP66、IP68 ratings.
• ABS versions carry an impact rating of IK08 per IEC 62262:2021.
• Recommended operating temperature: -20°C to +60°C (-4°F to +140°F).

Polycarbonate （customizable）

• Polycarbonate versions are UV stabilized for outdoor use， carry a UL94V-0 rating.
• Polycarbonate versions have been independently tested to meet IP66, IP67 and IP68。
• Polycarbonate versions carry an impact rating of IK08 per IEC 62262:2021.
• Recommended operating temperature: -40°C to +110°C (-40°F to +230°F).
• Customers should conduct their own testing to determine suitability for any specific application.

Part Details

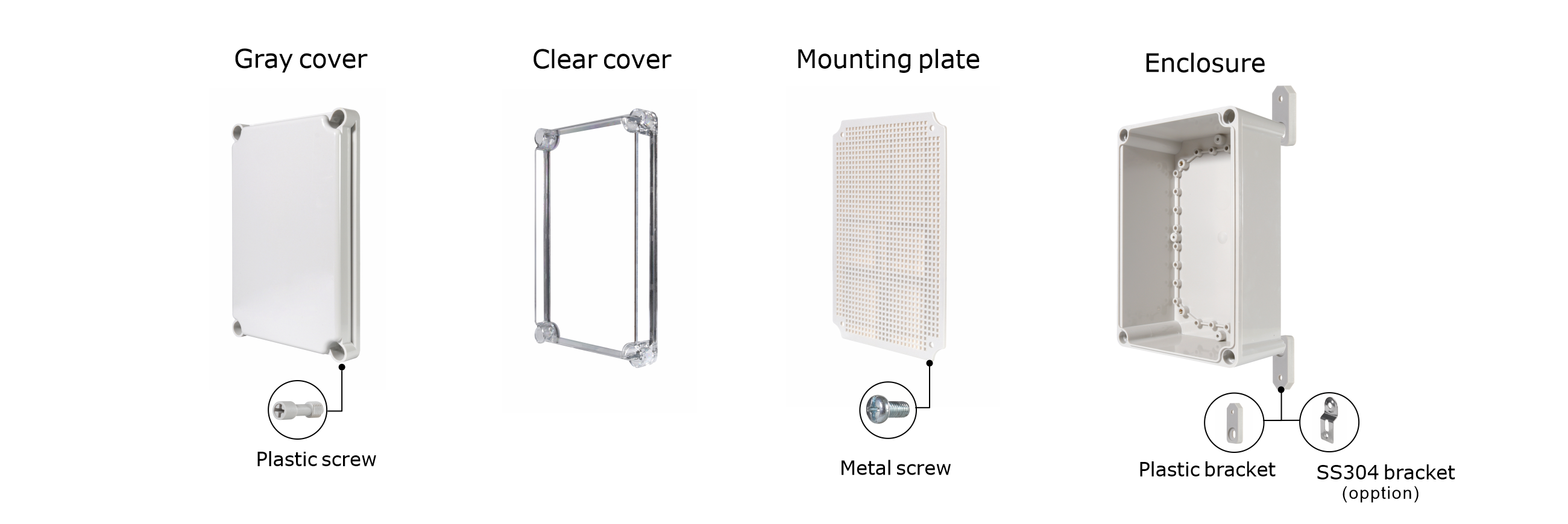

Photo Features

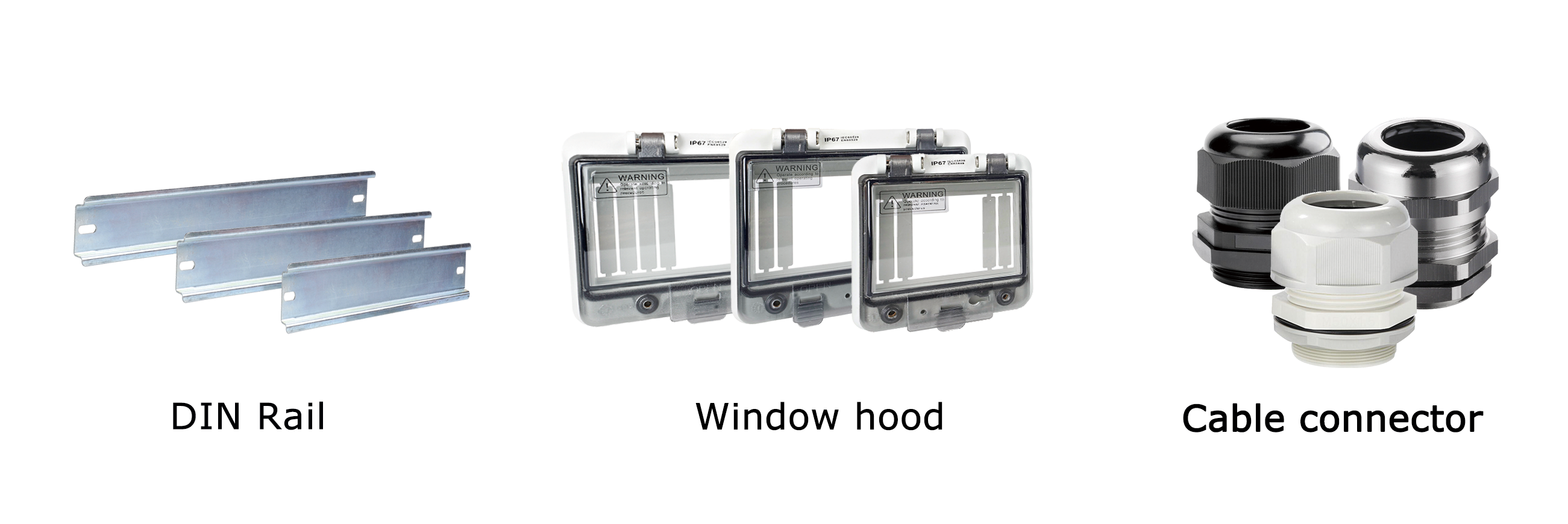

Accessories
