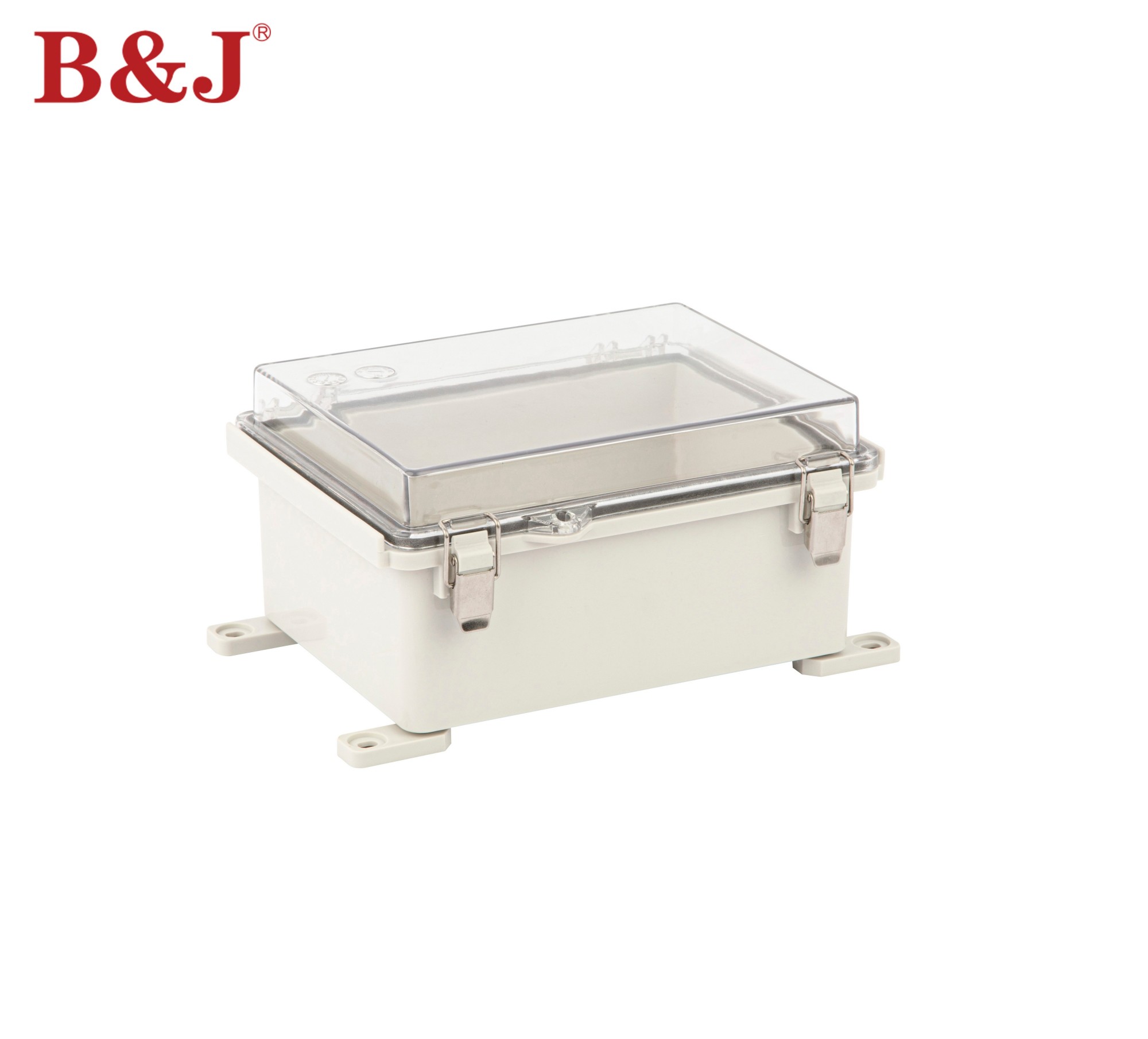

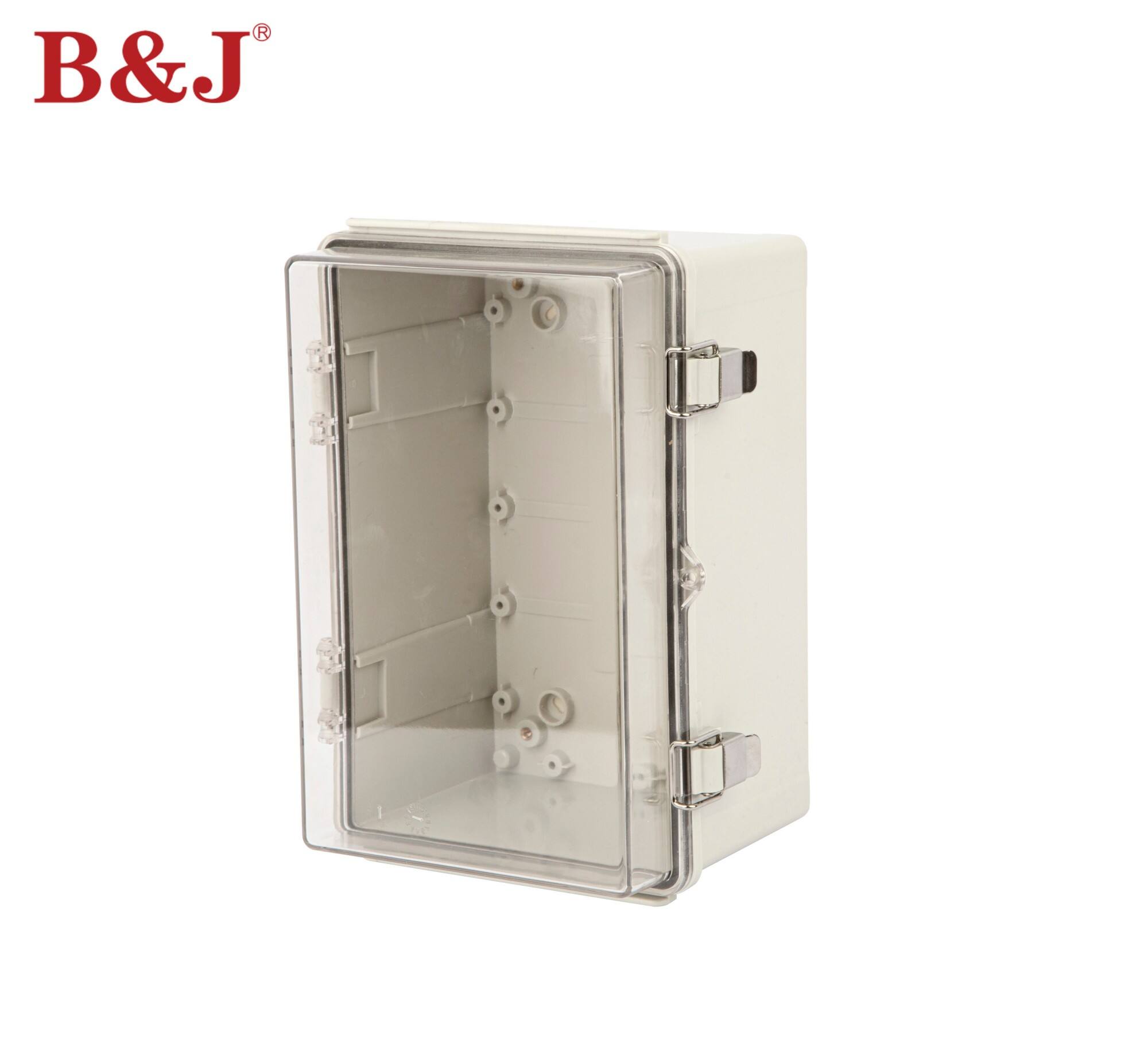

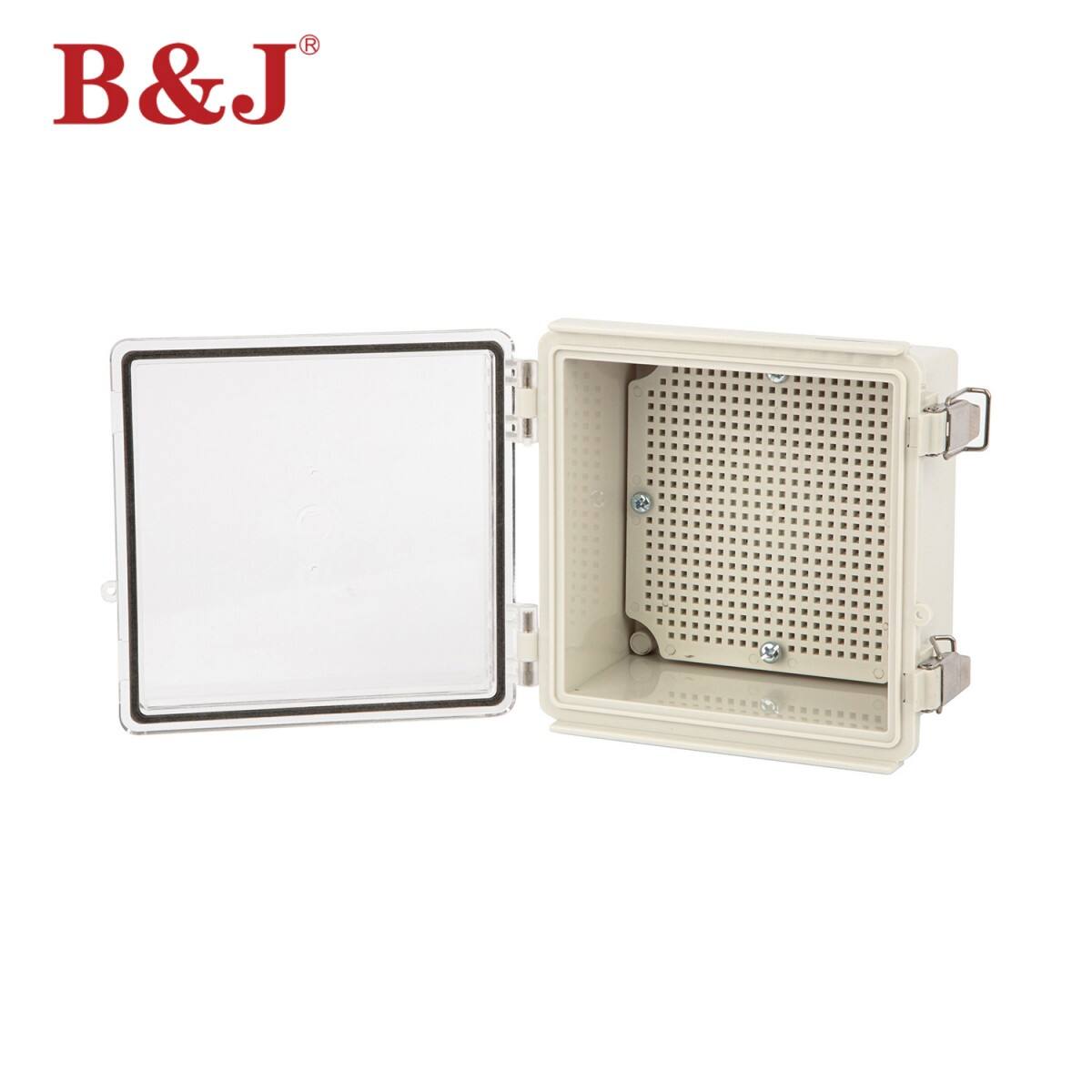

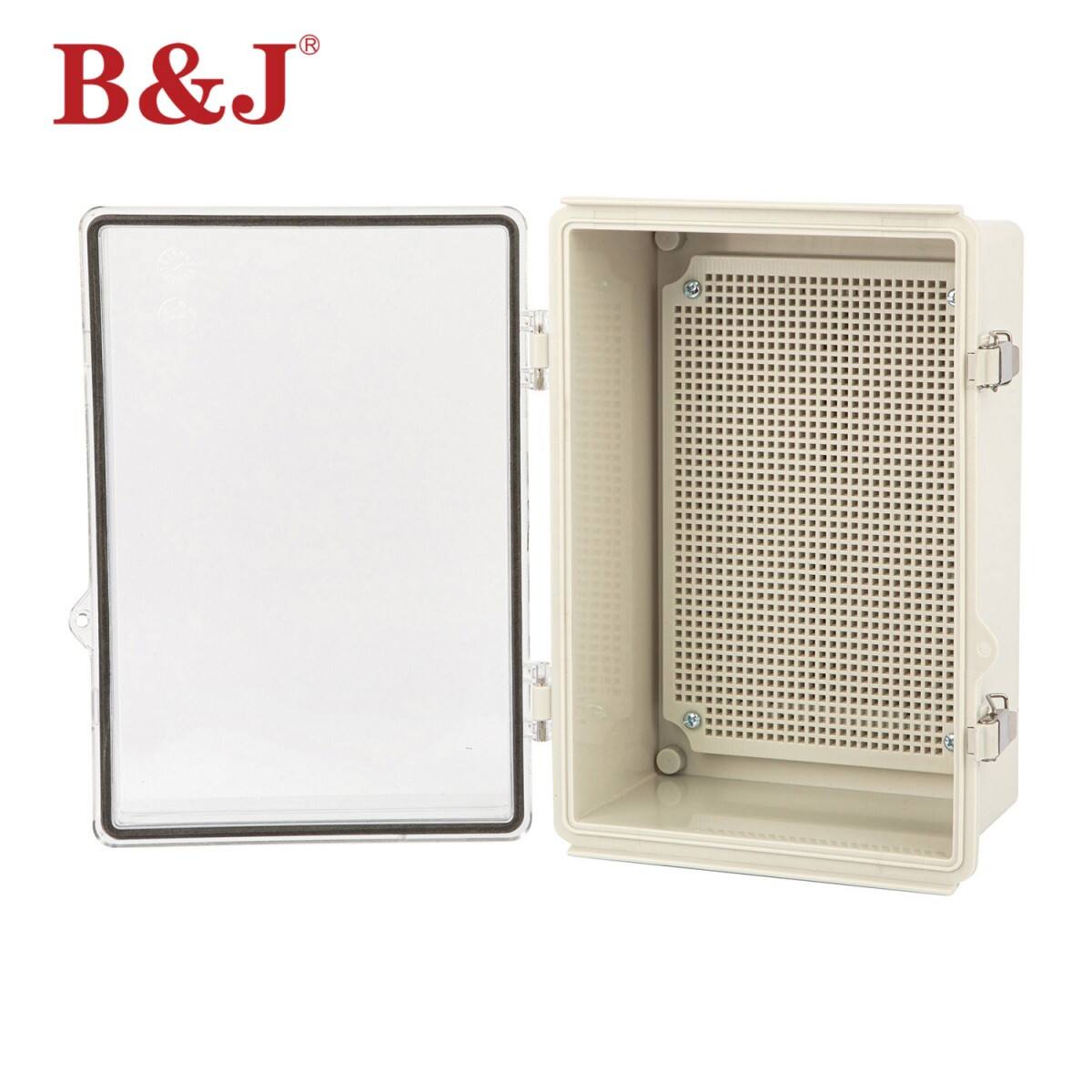

IP68 Waterproof Plastic Junction Box Electrical Box with Stainless Steel Hinges

IP68 Waterproof Plastic Junction Box Electrical Box with Stainless Steel Hinges

Model Number：BJHG(HT)

① Monthly output capacity: 25 containers.

② We are an export factory with 25 years' production experience

③ We provide customers with OEM and ODM services.

④ Delivery can be coordinated, with the shortest lead time being 15 days.

Overview
Recommended Products

Description:

Ip68 electrical junction box with Stainless steel hinges

Material:

ABS or PC
Characteristic:Waterproof,dustproof,corrosionresistance,impact resistance
IP Level:IP68
Impact Level:IK08
Temp Range:ABS:-20~+70℃ PC:-40~+110℃

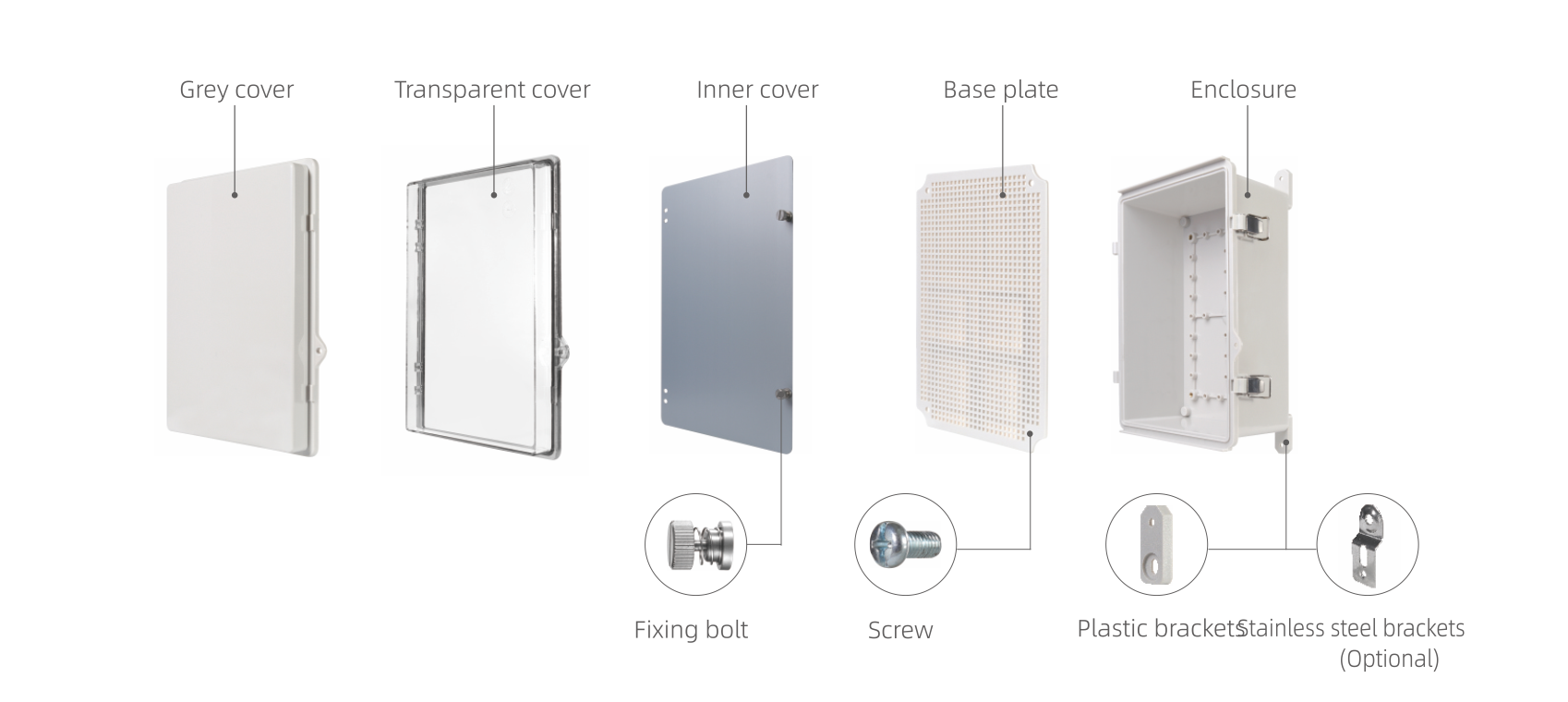

Supply includes:

Cover：grey or transparent cover can available
Mounting plate：pc*1 with screw*2
Hinges：Stainless steel hinges

Protection:

Protection degree: IP68
Impact resistaance: IK08

References:

Hinge type		Height	Width	Depth	Mounting plate	Inner door
Grey cover	Clear cover
BJ-HG-1515	BJ-HT-1515	150	150	90	1515MP	-
BJ-HG-1722	BJ-HT-1722	170	220	110	1722MP	-
BJ-HG-1928	BJ-HT-1928	190	280	130	1928MP	-
BJ-HG-3020	BJ-HT-3020	300	200	170	3020MP	3020ID
BJ-HG-2737	BJ-HT-2737	270	370	150	2737MP	-
BJ-HG-3040	BJ-HT-3040	300	400	180	3040MP	3040ID
BJ-HG-4050	BJ-HT-4050	400	500	200	4050MP	4050ID
