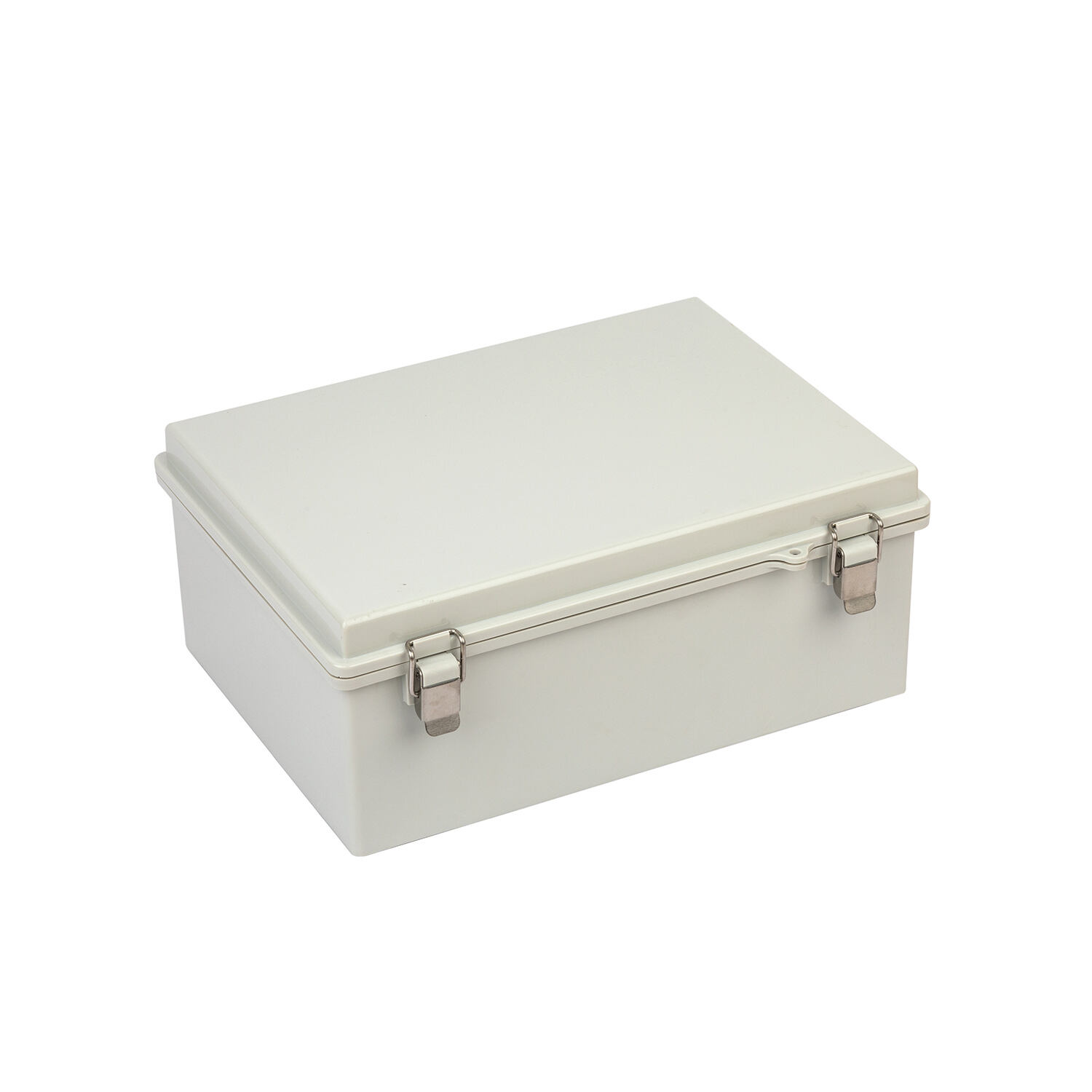

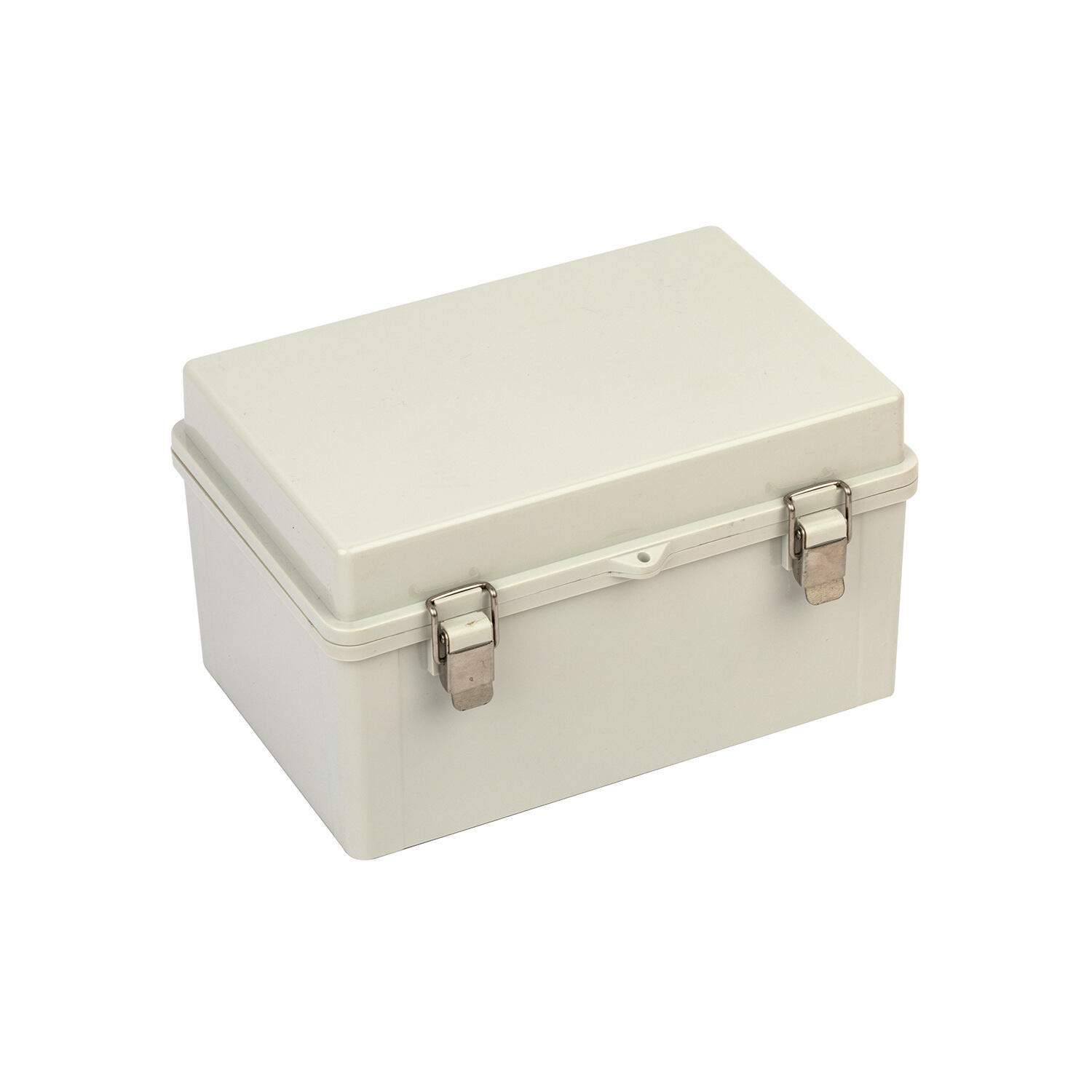

Stainless Steel Hinged IP678 Plastic Enclosure Box Dustproof Waterproof Electrical Box With Gray Cover
Stainless Steel Hinged IP678 Plastic Enclosure Box Dustproof Waterproof Electrical Box With Gray Cover
Stainless Steel Hinged IP678 Plastic Enclosure Box Dustproof Waterproof Electrical Box With Gray Cover
Stainless Steel Hinged IP678 Plastic Enclosure Box Dustproof Waterproof Electrical Box With Gray Cover
Stainless Steel Hinged IP678 Plastic Enclosure Box Dustproof Waterproof Electrical Box With Gray Cover
Stainless Steel Hinged IP678 Plastic Enclosure Box Dustproof Waterproof Electrical Box With Gray Cover
Stainless Steel Hinged IP678 Plastic Enclosure Box Dustproof Waterproof Electrical Box With Gray Cover
Stainless Steel Hinged IP678 Plastic Enclosure Box Dustproof Waterproof Electrical Box With Gray Cover
Stainless Steel Hinged IP678 Plastic Enclosure Box Dustproof Waterproof Electrical Box With Gray Cover
Stainless Steel Hinged IP678 Plastic Enclosure Box Dustproof Waterproof Electrical Box With Gray Cover
Stainless Steel Hinged IP678 Plastic Enclosure Box Dustproof Waterproof Electrical Box With Gray Cover
Stainless Steel Hinged IP678 Plastic Enclosure Box Dustproof Waterproof Electrical Box With Gray Cover
Stainless Steel Hinged IP678 Plastic Enclosure Box Dustproof Waterproof Electrical Box With Gray Cover
Stainless Steel Hinged IP678 Plastic Enclosure Box Dustproof Waterproof Electrical Box With Gray Cover
Stainless Steel Hinged IP678 Plastic Enclosure Box Dustproof Waterproof Electrical Box With Gray Cover
Stainless Steel Hinged IP678 Plastic Enclosure Box Dustproof Waterproof Electrical Box With Gray Cover
Stainless Steel Hinged IP678 Plastic Enclosure Box Dustproof Waterproof Electrical Box With Gray Cover
Stainless Steel Hinged IP678 Plastic Enclosure Box Dustproof Waterproof Electrical Box With Gray Cover
Stainless Steel Hinged IP678 Plastic Enclosure Box Dustproof Waterproof Electrical Box With Gray Cover
Stainless Steel Hinged IP678 Plastic Enclosure Box Dustproof Waterproof Electrical Box With Gray Cover
Stainless Steel Hinged IP678 Plastic Enclosure Box Dustproof Waterproof Electrical Box With Gray Cover
Stainless Steel Hinged IP678 Plastic Enclosure Box Dustproof Waterproof Electrical Box With Gray Cover
Stainless Steel Hinged IP678 Plastic Enclosure Box Dustproof Waterproof Electrical Box With Gray Cover
Stainless Steel Hinged IP678 Plastic Enclosure Box Dustproof Waterproof Electrical Box With Gray Cover
Stainless Steel Hinged IP678 Plastic Enclosure Box Dustproof Waterproof Electrical Box With Gray Cover
Stainless Steel Hinged IP678 Plastic Enclosure Box Dustproof Waterproof Electrical Box With Gray Cover

Stainless Steel Hinged IP678 Plastic Enclosure Box Dustproof Waterproof Electrical Box With Gray Cover

Model Number：BJHT

① Monthly output capacity: 25 containers.

② We are an export factory with 25 years' production experience

③ We provide customers with OEM and ODM services.

④ Delivery can be coordinated, with the shortest lead time being 15 days.

Get a Quote
  • Product Description

Product Description

Key Features：

  • Molded ABS enclosure with matching cover is easily punched, cut, or drilled.
  • Enhanced UV inhibitors protect against outdoor weathering.
  • Mesh-pattern plasitc mounting plate are provided for optional terminal kit mounting. Mounting hardware is included.
  • Stainless steel draw type "snap latch" door fasteners.
  • Door is supported with a continuous stainless steel hinge.
  • Captive oil resistant gasket provides a positive seal.
  • Threaded brass inserts are provided for mounting feet to the rear of the enclosure.
  • plastic mounting brackets and hardware are provided for mounting to the rear of the enclosure.

Application：

Designed for use as instrument enclosures, electric, hydraulic or pneu­matic control housings, electrical junction boxes or terminal wiring enclosures.

  • Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
  • Ideal in applications with high temperatures or highly corrosive environments.

Supply includes:

  • Mounting plate：pc*1 with screw*2
  • Hinges：Stainless steel hinges

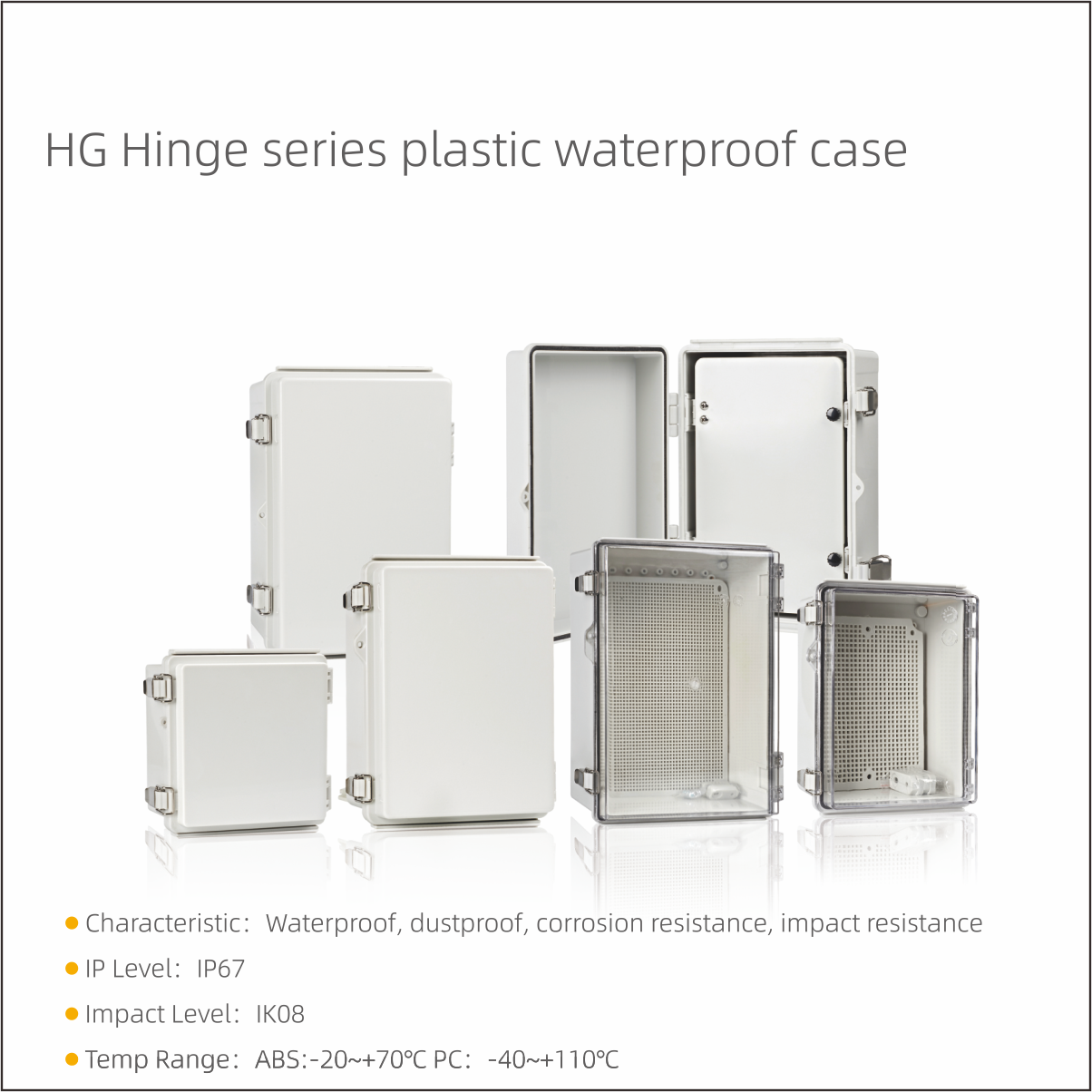

Protection:

  • Protection degree: IP68
  • Impact resistaance: IK08
  • Temp Range:ABS:-20~+70℃ PC:-40~+110℃

References:

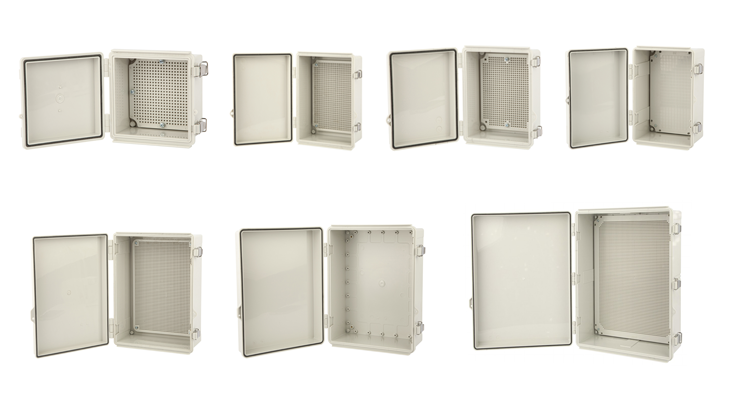

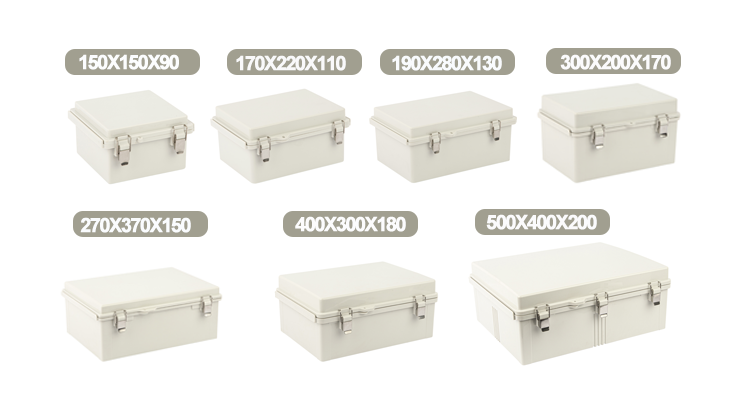

Hinge type Height Width Depth Mounting plate Inner door
Grey cover Clear cover

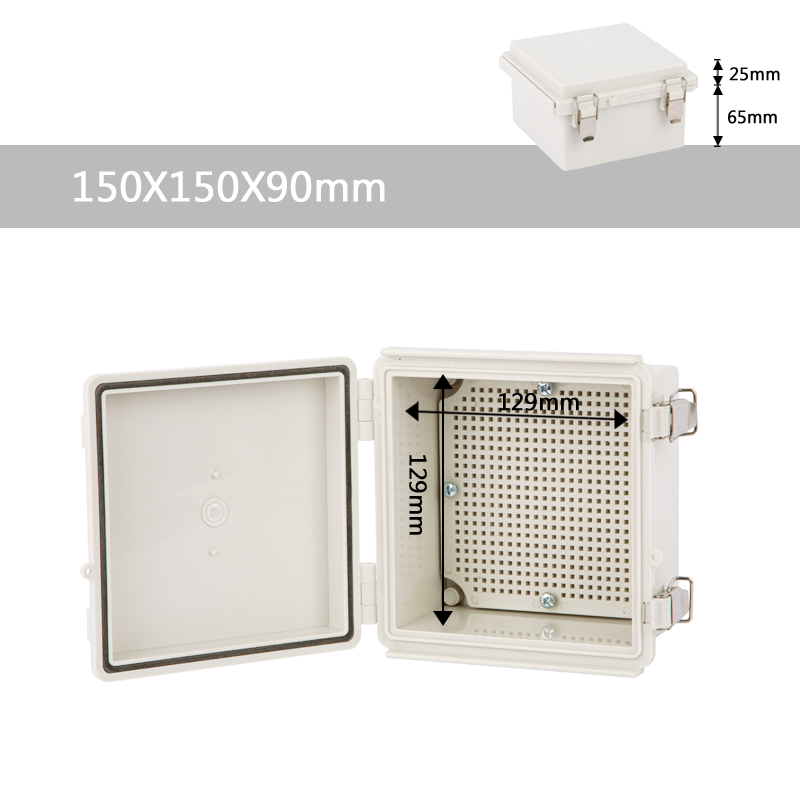

BJ-HG-1515 BJ-HT-1515 150 150 90 1515MP -

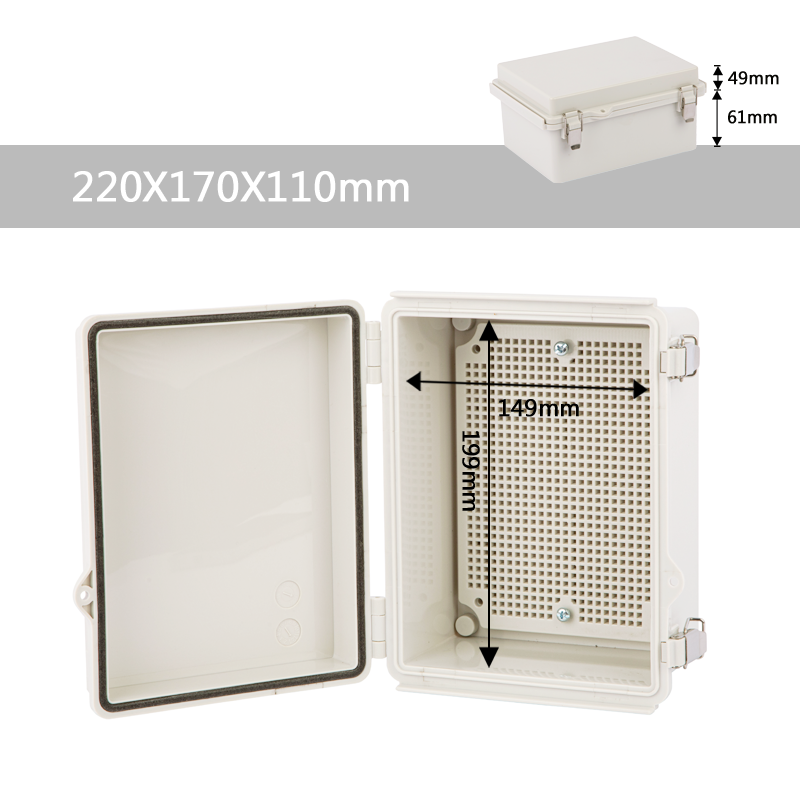

BJ-HG-1722 BJ-HT-1722 170 220 110 1722MP -

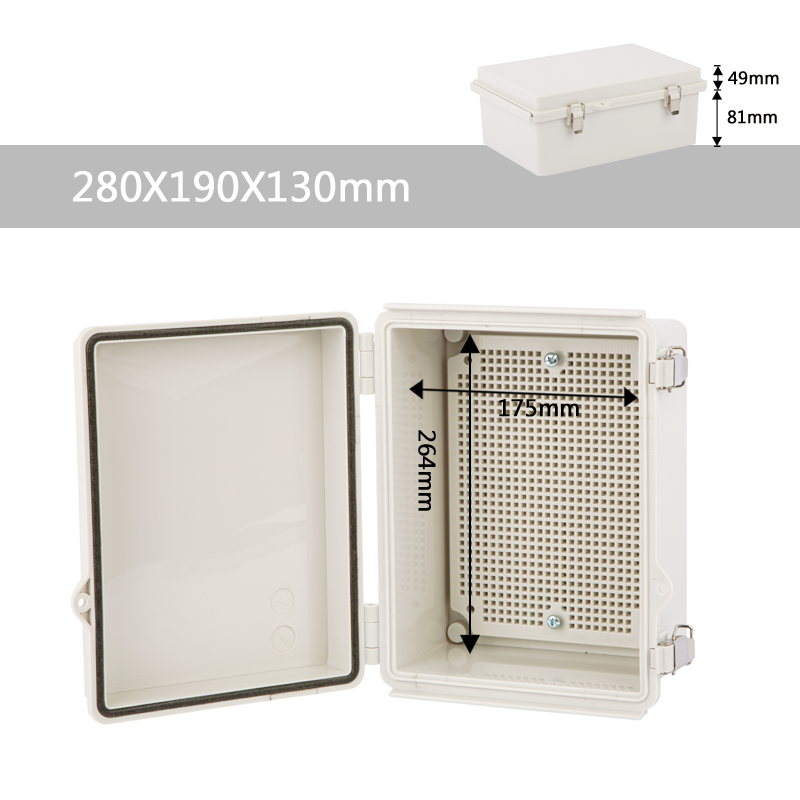

BJ-HG-1928 BJ-HT-1928 190 280 130 1928MP -

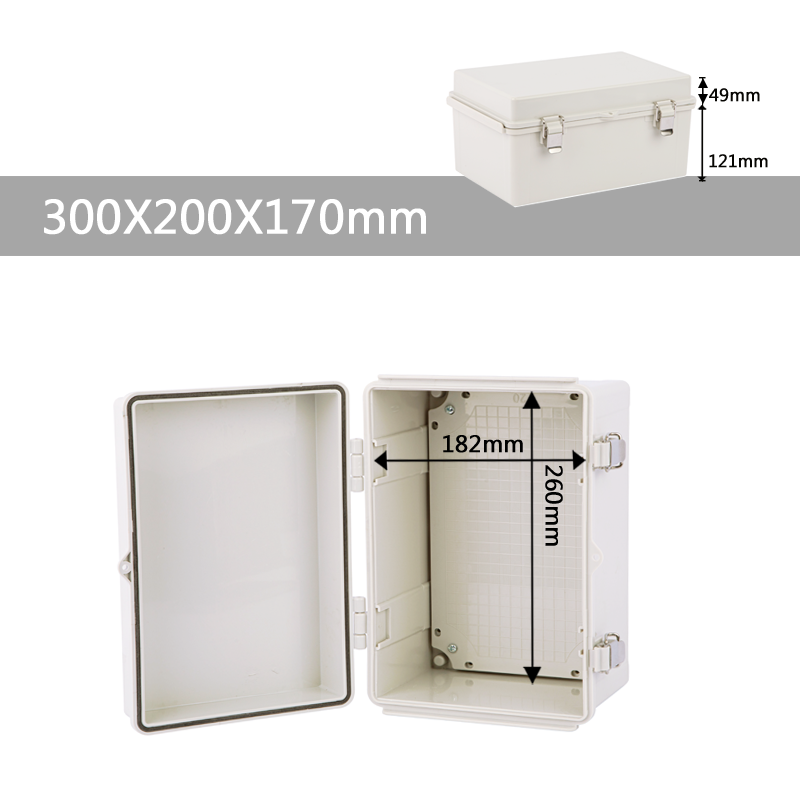

BJ-HG-3020 BJ-HT-3020 300 200 170 3020MP 3020ID

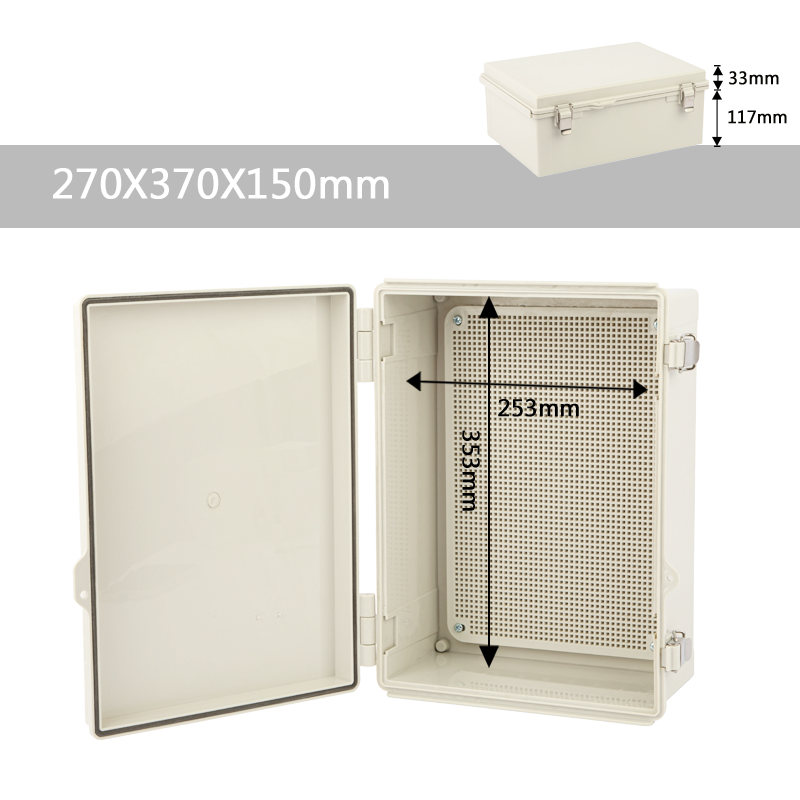

BJ-HG-2737 BJ-HT-2737 270 370 150 2737MP -
BJ-HG-3040 BJ-HT-3040 300 400 180 3040MP 3040ID
BJ-HG-4050 BJ-HT-4050 400 500 200 4050MP 4050ID
