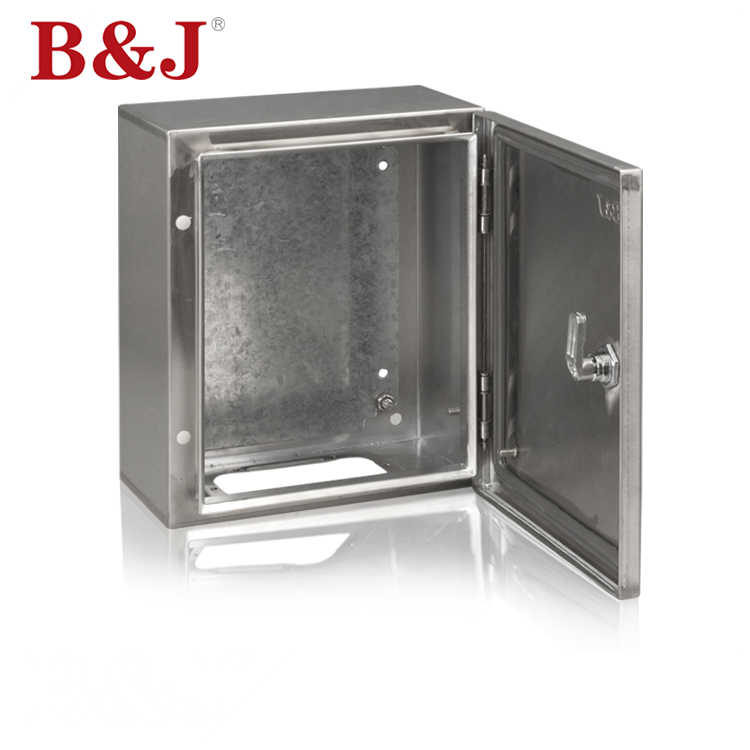

Wall Mount Enclosure Waterproof Outdoor IP66 Stainless Steel Panel Box

Application

• Designed to enclose electrical and/or electronic equipment and protect against harsh, hygienic environments for wallmount applications.
• Sloped top prevents water from resting on top as well as providing potential for controls mounting.
• Internal hinge design and door-edge mounted silicone gasket allow for easy cleaning in hose-down environments.
• A wide range of sizes and practical accessories make this product line a complete package.

Material:

• Enclosure and door: AISI 304 or AISI 316 Stainless Steel 1.2mm till size BJS1-88/300 then 1.5mm
• Mounting plate: galvanized steel 2.0mm

Standards

• Protection degree: IP66，IEC 60529
• Impact resistaance: IK10

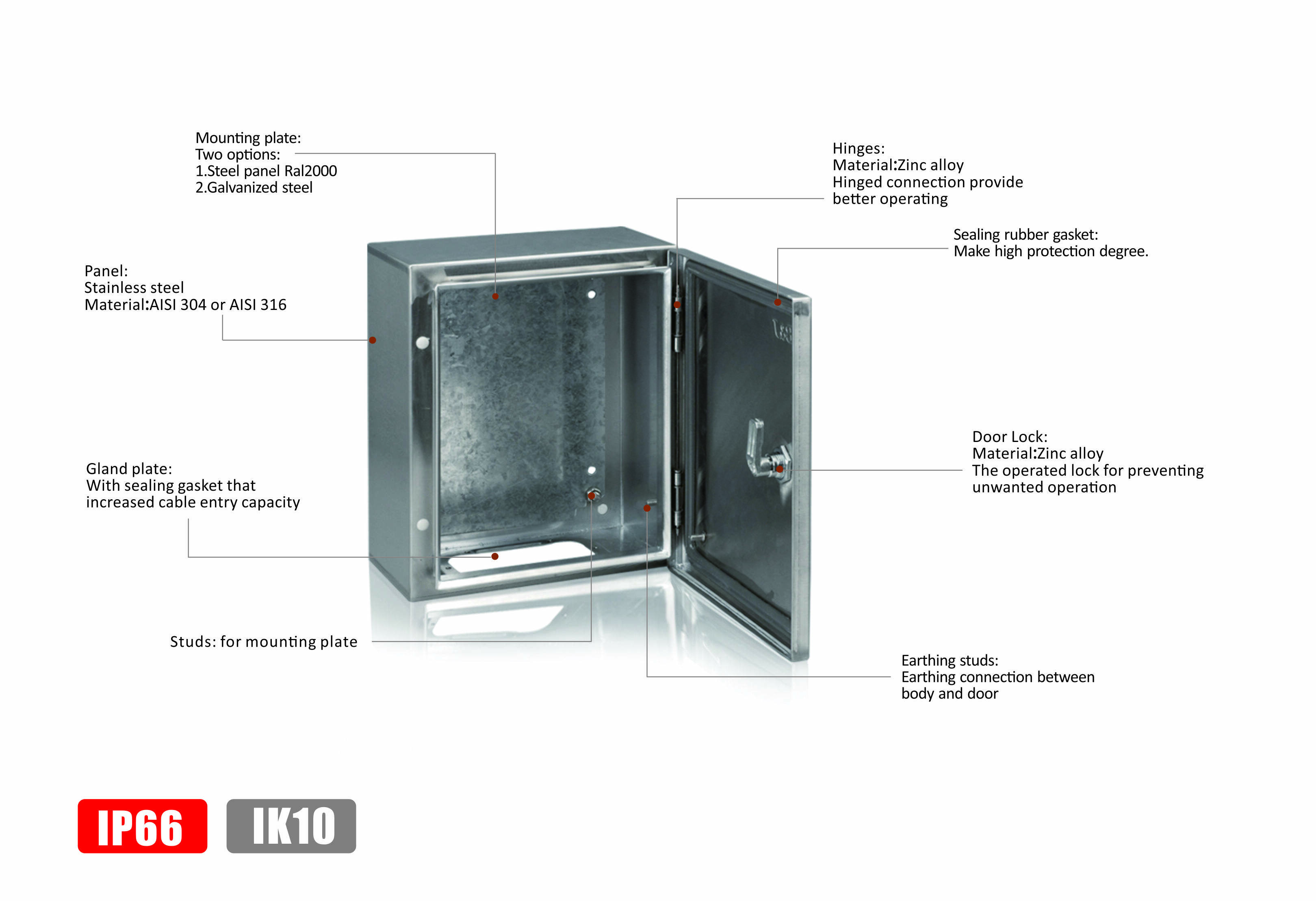

Construction

• • Formed, smooth 304 stainless steel.
  • Continuously welded seams ground smooth.
  • Back with 4 welded studs for fixing of mounting plats and depth adjustable supports.4drillings for direct wall fixing or through brackets.
  • Door stiffeners are provided（from 600mm.high enclosures up） required for increased strength and rigidity.
  • Interior hinges provide 120° degree opening, are easily removed for reverse door swing or on-site modifications.
  • Polyurethane foamed gasket ensuring full watertightness.
  • Silicone gasket (hygienic blue) mounts around entire door edge allowing for efficient cleaning in hygienic environments.
  • Gasket can be easily removed and re-installed for cleaning or replacement.
  • Internal alignment guide provided to limit door sag.
  • Collar studs provided for mounting inner panel.
  • Includes hardware kit with panel mounting nuts.

References and Details of Enclosure
