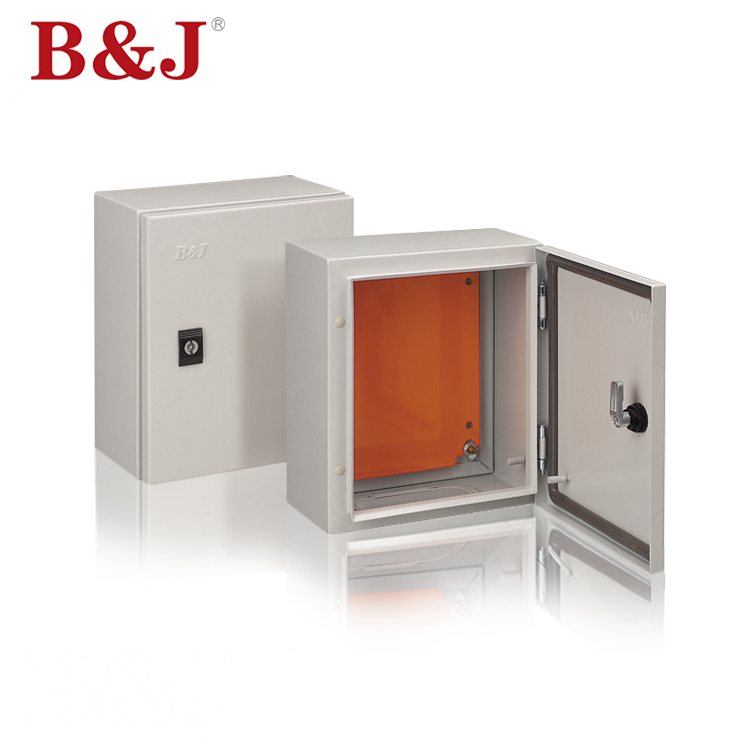

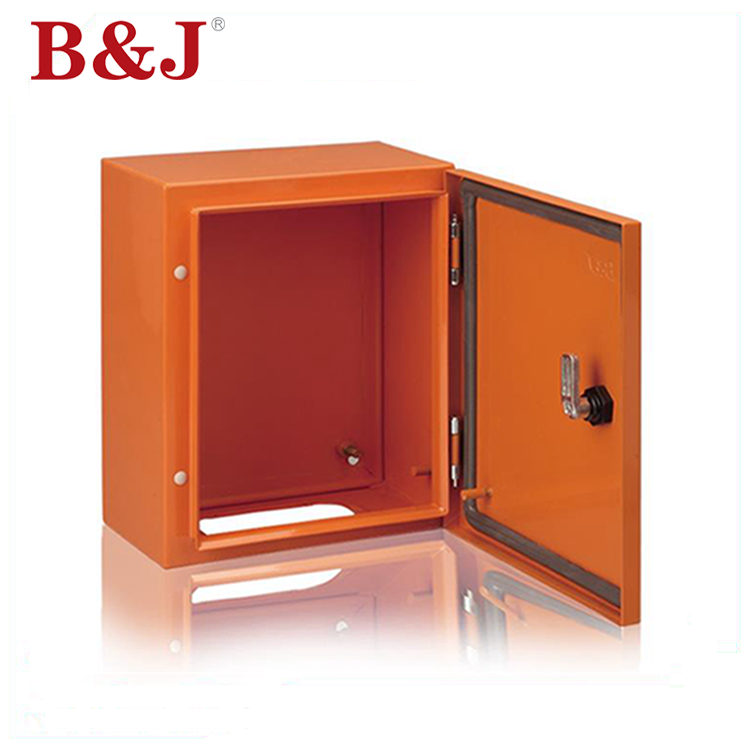

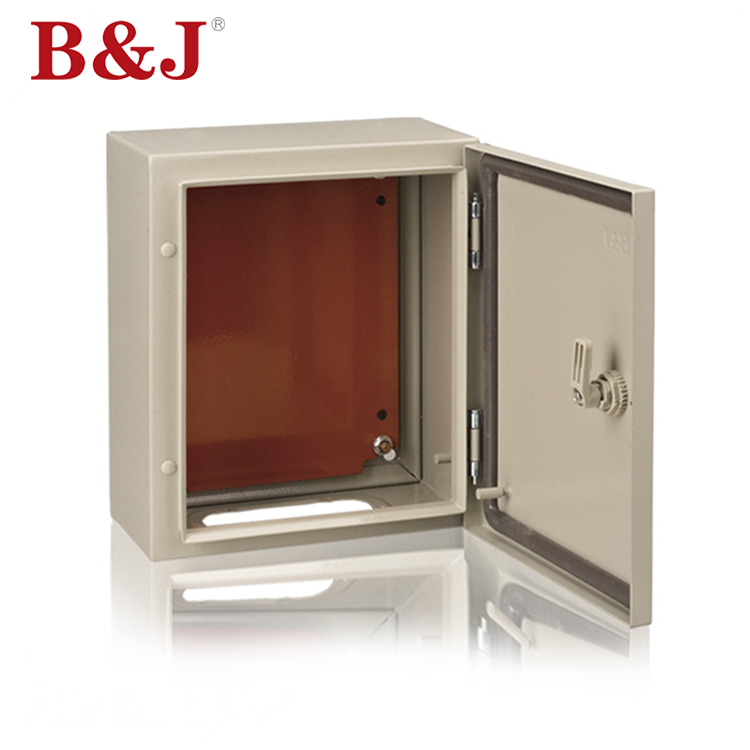

Wall Mount Metal Enclosure Waterproof Outdoor IP66 Distribution Box
Model Number：BJS1
① Monthly output capacity: 25 containers.
② We are an export factory with 25 years' production experience
③ We provide customers with OEM and ODM services.
④ Delivery can be coordinated, with the shortest lead time being 15 days.
- Overview
- Recommended Products
- Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- Provides a degree of protection from falling dirt, dust, oil and water.

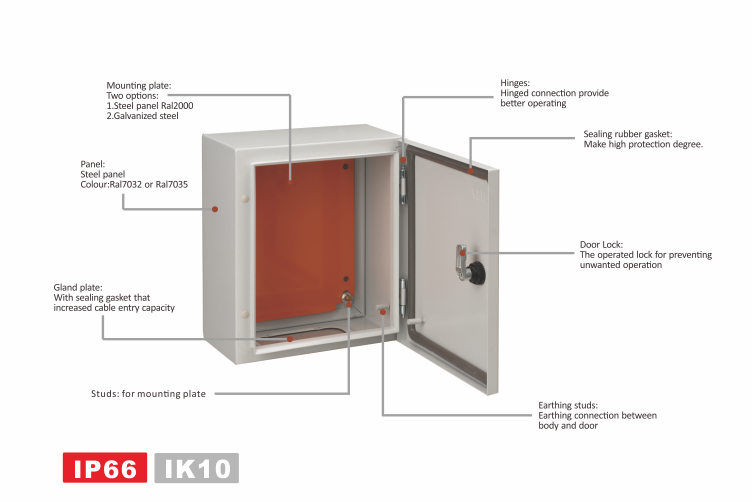

- Enclosure: Sheet steel 1.2mm till size BJS1-88/300 then 1.5mm
- Door: Sheet steel 1.2mm till size BJS1-66/300 then 1.5mm
- Mounting plate: 2.0mm
- Protection degree: IP66,CE,TUV,IEC 60529
- Impact resistaance: IK10
- Enclosure and door: Dipcoat-primed, powder-coated in textured Ral7032 or Ral7035 outside
- Mounting plate: RAL2000 or galvanized
Application
Material:
Standards
Surface Finish
References and Details of Enclosure
Reference |
Height |
Width |
Depth |
number of gland hole |
||
|
mm |
quantity |
Width |
Depth |
||
BJS1-2020/150 |
200 |
200 |
150 |
1 |
130 |
60 |
BJS1-2520/150 |
250 |
200 |
150 |
1 |
130 |
60 |
BJS1-2525/150 |
250 |
250 |
150 |
1 |
130 |
60 |
BJS1-33/150 |
300 |
300 |
150 |
1 |
175 |
60 |
BJS1-33/150 |
300 |
300 |
150 |
1 |
175 |
60 |
BJS1-34/200 |
300 |
400 |
200 |
1 |
318 |
120 |
BJS1-44/150 |
400 |
400 |
150 |
1 |
175 |
60 |
BJS1-46/200 |
400 |
600 |
200 |
1 |
415 |
120 |
BJS1-53/250 |
500 |
300 |
250 |
1 |
175 |
60 |
BJS1-54/200 |
500 |
400 |
200 |
1 |
318 |
120 |
BJS1-1010/250 |
1000 |
1000 |
250 |
2 |
415 |
120 |
BJS1-128/300 |
1200 |
800 |
300 |
1 |
415 |
120 |
BJS1-1210/250 |
1200 |
1000 |
250 |
2 |
415 |
120 |
Other sizes,cut-outs and drilled holes according to your requirement | ||||||
