Knock Down Electrical Steel Box IP55 Electrical Steel Box
Knock Down Electrical Steel Box IP55 Electrical Steel Box
Knock Down Electrical Steel Box IP55 Electrical Steel Box
Knock Down Electrical Steel Box IP55 Electrical Steel Box

Knock Down Electrical Steel Box IP55 Electrical Steel Box

Model Number：BJHE-A

① Monthly output capacity: 25 containers.

② We are an export factory with 25 years' production experience

③ We provide customers with OEM and ODM services.

④ Delivery can be coordinated, with the shortest lead time being 15 days.

Get a Quote
  • Product Description

Product Description

Material:

  • Enclosure: Sheet steel 1.5mm
  • Door: Sheet steel 1.5mm
  • Mounting plate: 2.0mm

Standards

  • Protection degree: IP55,CE,TUV,IEC 60529

Surface Finish:

  • Enclosure and door: Dipcoat-primed, powder-coated in textured Ral7032 or Ral7035 outside
  • Mounting plate: RAL2000 or galvanized

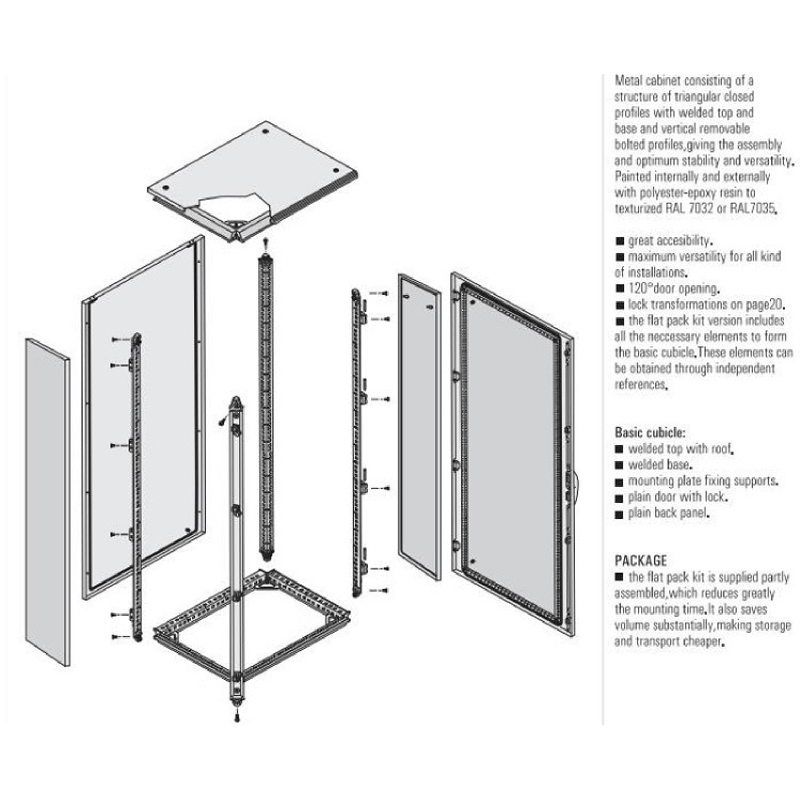

Construction

  • Metal cabinet consisting of a structure of triangular closed profiles with welded top and base and vertical removable bolted profiles,giving the assembly and optimum stability and versatility Painted internally and externally with polyester-epoxy resin to texturized RAL 7032 or RAL7035.
  • great accesibility.
  • maximum versatility for all kind of installations.120°door opening.
  • the flat pack kit version includes all the neccessary elements to fom the basic cubicle.These elements canbe obtained through independent references.
  • Basic cubicle:

■ welded top with roof.

■ welded base.

■ mounting plate fixing supprts.

■ plain door with lock.

■ plain back panel.

References and Details of Enclosure

Reference

Size（HXWXD)

Profile

Top cover and base

Front door and back panel

Side panels

Mounting plate

BJHE-A 166/30

1600x600x300

PF16

TB63

FB166

SP163

MP166

BJHE-A 166/40

1600x600x400

PF16

TB64

FB166

SP164

MP166

BJHE-A 168/30

1600x800x300

PF16

TB83

FB168

SP163

MP168

BJHE-A 1610/30

1600x1000x300

PF16

TB103

FB1610

SP163

MP1610

BJHE-A 186/30

1800x600x300

PF18

TB63

FB186

SP183

MP186

BJHE-A 186/40

1800x600x400

PF18

TB64

FB186

SP184

MP186

BJHE-A 188/60

1800x800x600

PF18

TB86

FB188

SP186

MP188

BJHE-A 1810/40

1800x1000x400

PF18

TB104

FB1810

SP184

MP1810

BJHE-A 206/30

2000x600x300

PF20

TB63

FB206

SP203

MP206

BJHE-A 206/40

2000x600x400

PF20

TB64

FB206

SP204

MP206

BJHE-A 208/40

2000x800x400

PF20

TB84

FB208

SP204

MP208

BJHE-A 208/50

2000x800x500

PF20

TB85

FB208

SP205

MP208

BJHE-A 208/40

2000x800x400

PF20

TB84

FB208

SP204

MP208

BJHE-A 208/50

2000x800x500

PF20

TB85

FB208

SP205

MP208

Double doors（2 doors)

BJHE-A 1612/30

1600x1200x300

PF16

TB123

FB1612

SP163

MP1612

BJHE-A 1812/40

1800x1200x400

PF18

TB124

FB1812

SP184

MP1812

BJHE-A 1812/50

1800x1200x500

PF18

TB125

FB1812

SP185

MP1812

BJHE-A 2012/50

2000x1200x500

PF20

TB125

FB2012

SP205

MP2012

BJHE-A 2012/60

2000x1200x600

PF20

TB126

FB2012

SP206

MP2012

Other sizes,cut-outs and drilled holes according to your requirement
